Create colorful world
Neitabond Polyester aluminum composite panel consists of aluminum layers on both sides with a polyethylene core. It’s coated with a polyester lacquer. The low weight sheet material can be easily fabricated,making it an ideal material for creative applications both indoors and outdoors.
Soft white or bright red? Solid colours are always a good choice when a uniform appearance without special effects is required.
Neitabond Polyester aluminum composite panel consists of aluminum layers on both sides with a polyethylene core. It’s coated with a polyester lacquer. The low weight sheet material can be easily fabricated,making it an ideal material for creative applications both indoors and outdoors.
Raw material:
Base material:high strength aluminum alloy sheet
PE core material: non-toxic low density polyethylene
Surface coating: polyester coating
Back coating: primer coating
Product properties
Lightweight, excellent printable surface
Outstanding color & glossy retention
Superior impact & peel strength
Excellent surface flatness & smoothness
Various color & easy to maintain
APPLICATIONS:

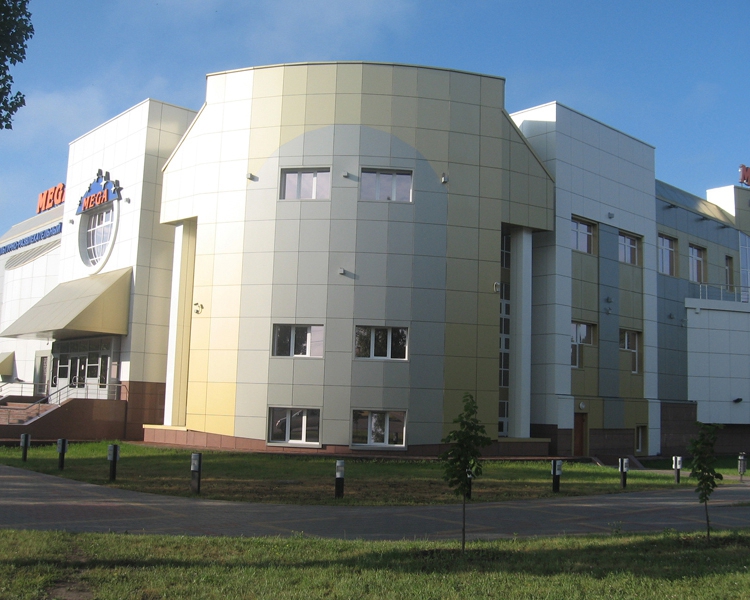

1. Wall curtain,Cladding and Fecade
2. Roof edges and Parapet wall
3. Dado,Separation wall and Partition
4. Interior wall,Ceiling,Bathroom, Kitchen and Balcony
5. Advertisement boards, display platforms and signboards
6. Column covers and Beam wraps
7. Industrial materials, vehicle and boat materials
…
| Aluminum alloy | AA1100 H 18 |
| Aluminum skin | 0.1mm,0.15mm 0.21mm,0.30mm,0.40mm,0.5mm |
| Panel thickness | 2mm,3mm,4mm,5mm,6mm |
| Panel width | 1220mm,1250mm,1500mm |
| Panel length | 2440mm,3050mm,4050mm |
| Surface treatment | Polyester |
| Colors | 80 colors, special colors available upon request |
| Customers size | accepted |
| GLOSSY | 20%-80% |
| Description | Test standard | Polyester |
| Thickness of coating | Polyester paint≧16um | 16um to 18um |
| Coating flexibility (T-bend) | Polyester paint≥3T | 3T |
| Color different | ΔE≦2.0(follow color sample) | ΔE≦2.0 |
| Pencil hardness | ≧HB | ≧2H |
| Chemical resistance | 2%HCI or 2% NaOH test in 24 hours -No change | No change |
| Coating adhesion | ≧1grade for 10*10mm2 gridding test | 1grade |
| Resist solvent | 100times with Dimethy benzene without change | No change |
| Boiling water resistance | 2 hours without change | No change |
Peeling strength/ stripping strength | Average ≧5N/mm of 180oc peel off for panel with 0.21mm alu.skin | 5N/mm |
| Impact test for paint | 20KGNaN impact-paint no split for panel | No split |
| Abrasion resistance (L/Mil) | NIL | NIL |
| Temperature resistance | -40℃ to +80℃ temperature without change of color difference and paint peel off, peeling strength average dropprate ≦10% | Change of glossy only, no paint Peel off |
Coefficient of linear Thermal Expansion | 100℃ temperature difference | 2.4mm/m |
| Detergent resistance (3%) | ASTM D2248 | No change |
Humidity Resistance (3000hrs,100%RH,100°F) | ASTM D2247 | No change |
Salt spray resistance (3000hrs,5% salt) | ASTM B117 | No change |
| Resistance to Staining | 600h radiate in 800W/M2 in humidity condition ,glossiness deviation less grade 2,color difference ≦4.0 | No change |
The company possesses production lines for aluminum-plastic panels whose annual output is 520 million square meters.
